Repeater Specifications
Frequency: 447.475 MHz
Offset: -5 MHz
PL Tone: 100.0 Hz
AllStar Node: 600790
RepeaterBook: View on RepeaterBook
Current Setup
The repeater is now operating with the following configuration:
- RLC3 Controller - The controller for managing the repeater's operations.
- Intermountain Intertie - The repeater is connected to the Intermountain Intertie network.
- Link Radio - The repeater is linked to the network via a TKR830 UHF link radio.
- Snowbird - The repeater is integrated with Snowbird's repeater system for expanded coverage.

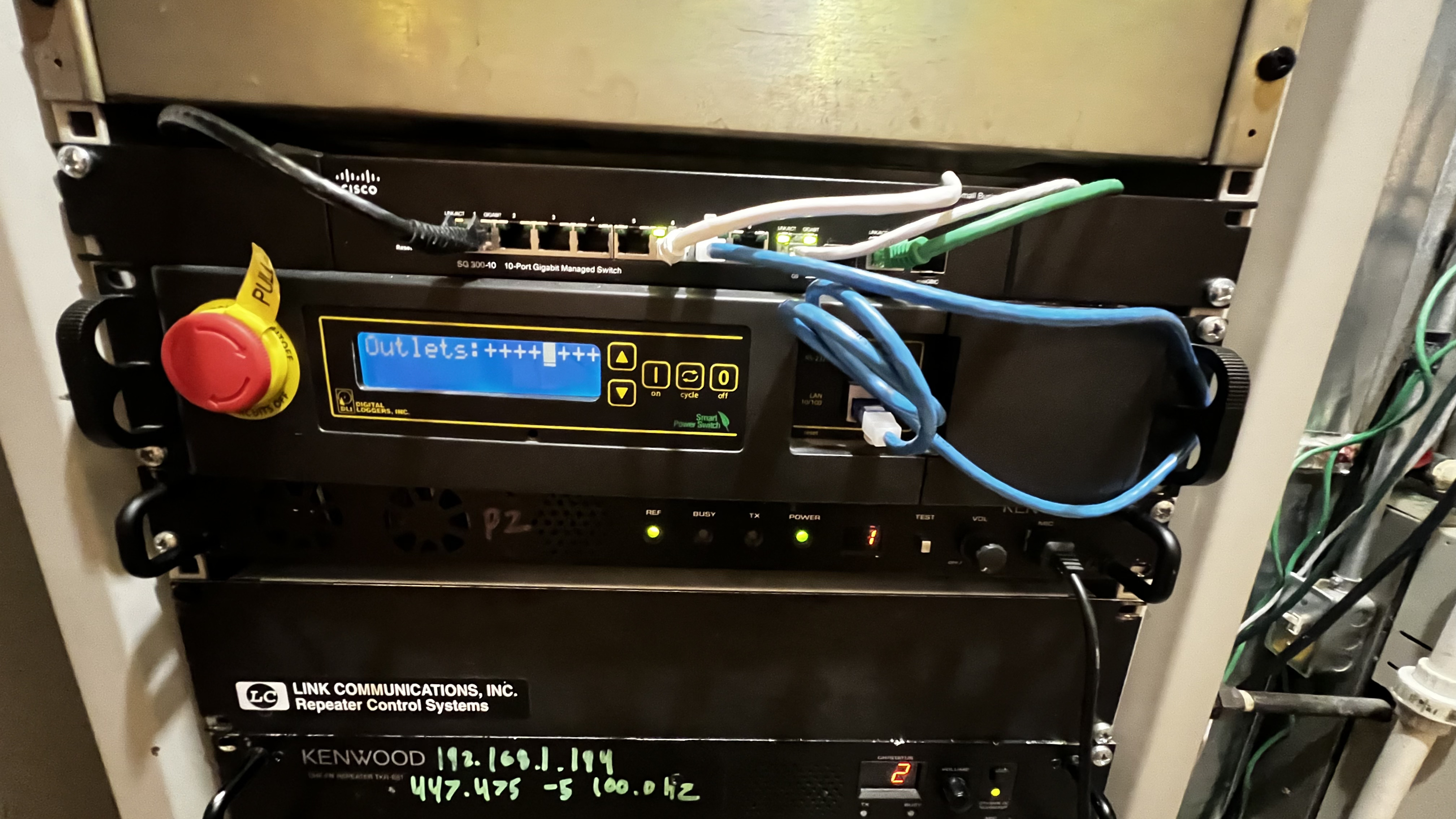

Server Rack Setup
This is the server rack setup containing the KK7GKG - QTH repeater. Below is a breakdown of the equipment:
- Top: Temporary 446.075 MHz repeater (in testing)
- Second from Top: Cisco SG 300-10 Gigabit Network Switch
- Third from Top: Digital Loggers IP Power Switch
- Fourth from Top: Kenwood TKR 830 Link Radio
- Fifth from Top: LinkComm RLC3 Repeater Controller
- Bottom: Kenwood TKR 851 Repeater (447.475 MHz)

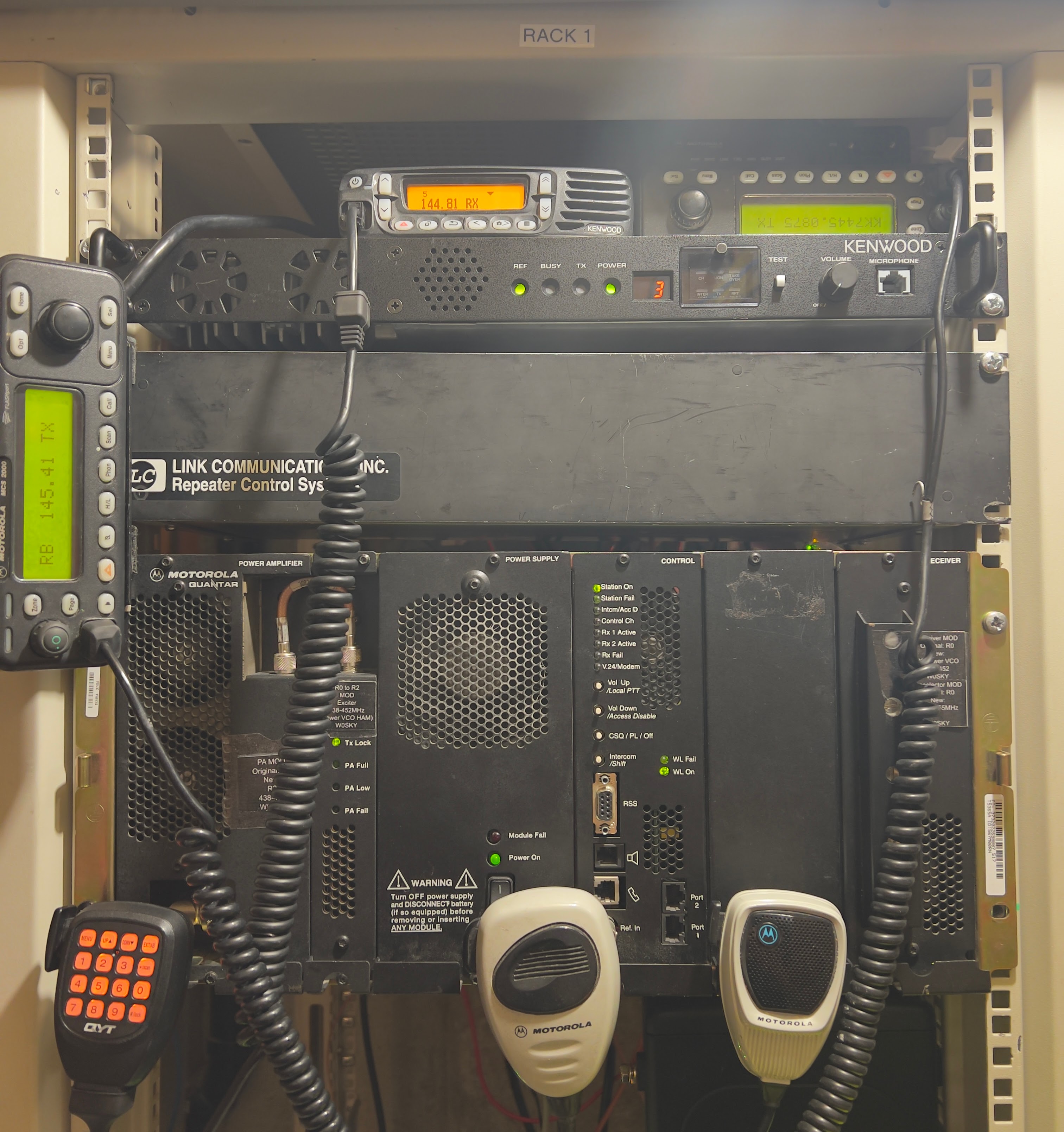

Server Rack: The setup containing the 447.475 MHz repeater and associated equipment.
