Welcome to the N2SKY - Butterfield Repeater Page!
Discover the technical details and current status of the N2SKY repeater operating on 449.375 MHz.
Repeater Specifications
- Frequency: 449.375 MHz
- Offset: -5 MHz
- Power: 25 Watts
- Duplexer: Decibel D56694-2
- Antenna: DB404
- Status: Online
Current Setup
The Repeater system consists of:
- Kenwood TKR851 (Rpeeater)
- RLC3 Repeater Controller (3 Ports)
- Decibel D56694 (Duplexer)
- Raspberry Pi (ASL Link)
- Commscope DB-404 (Antenna)
Photo Gallery

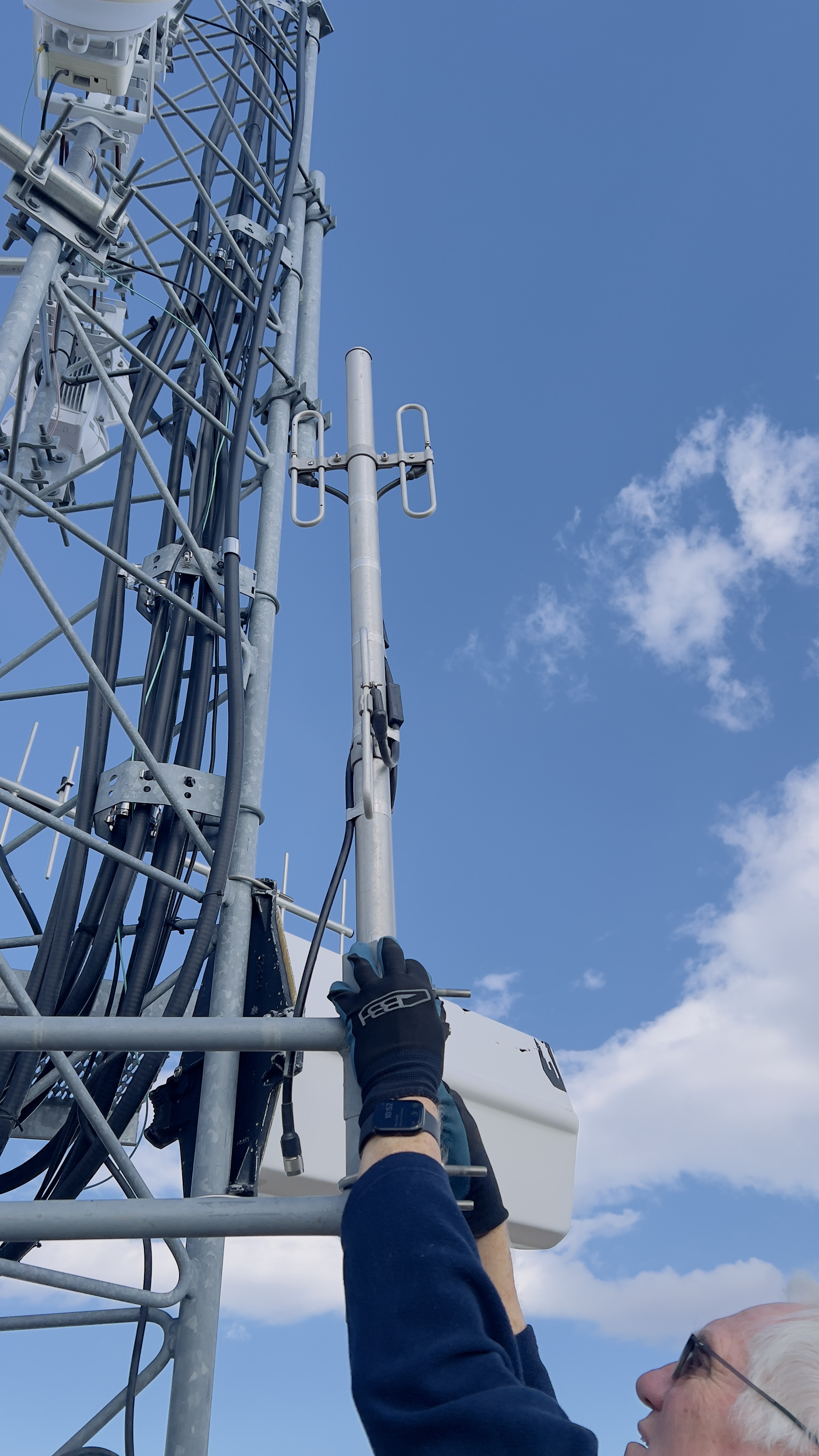

The DB404 antenna with K7MLA (Marty) Bolting it up

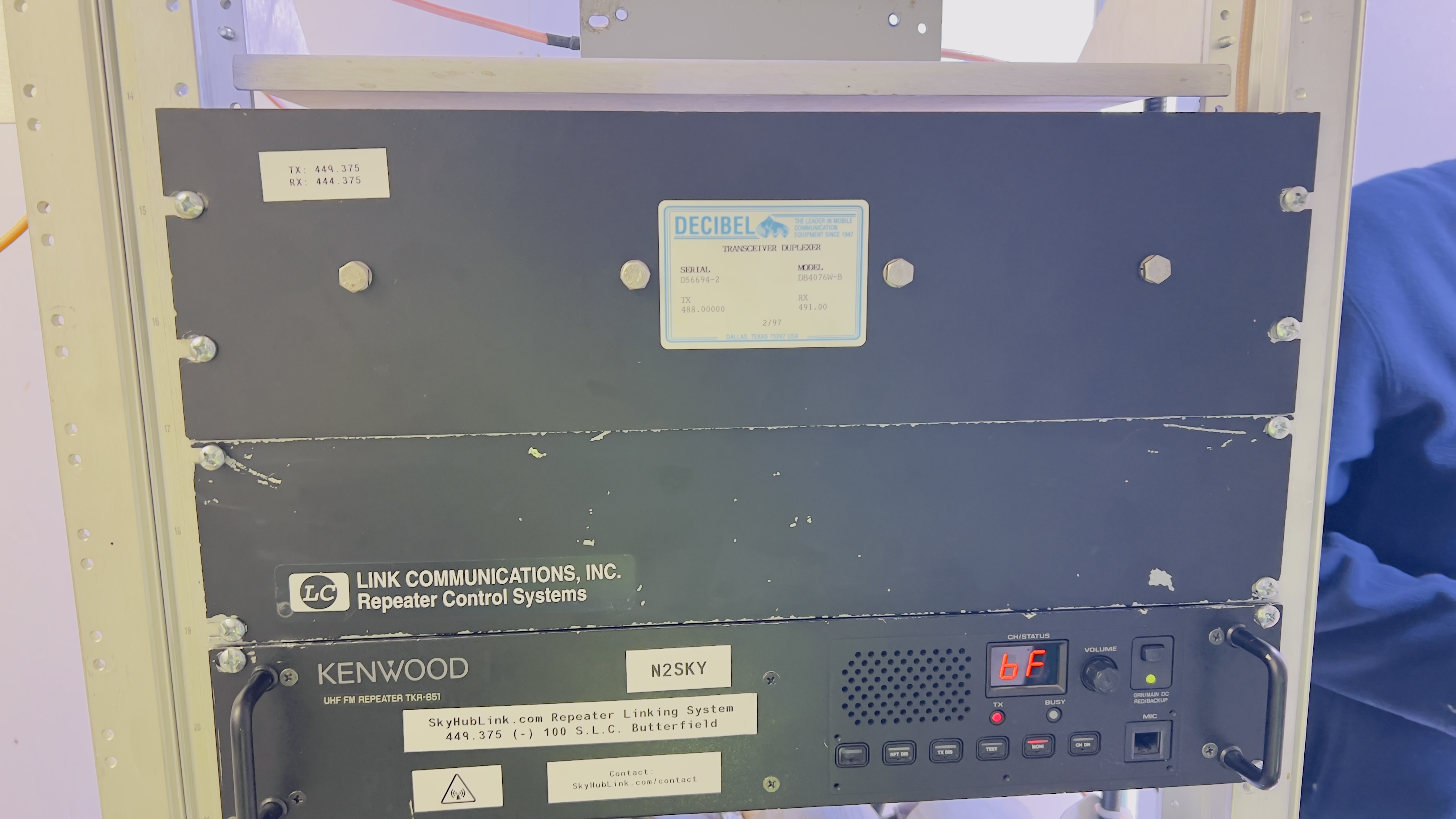

The Kenwood TKR851, Duplexers, and the RLC 3 Repeater Controller

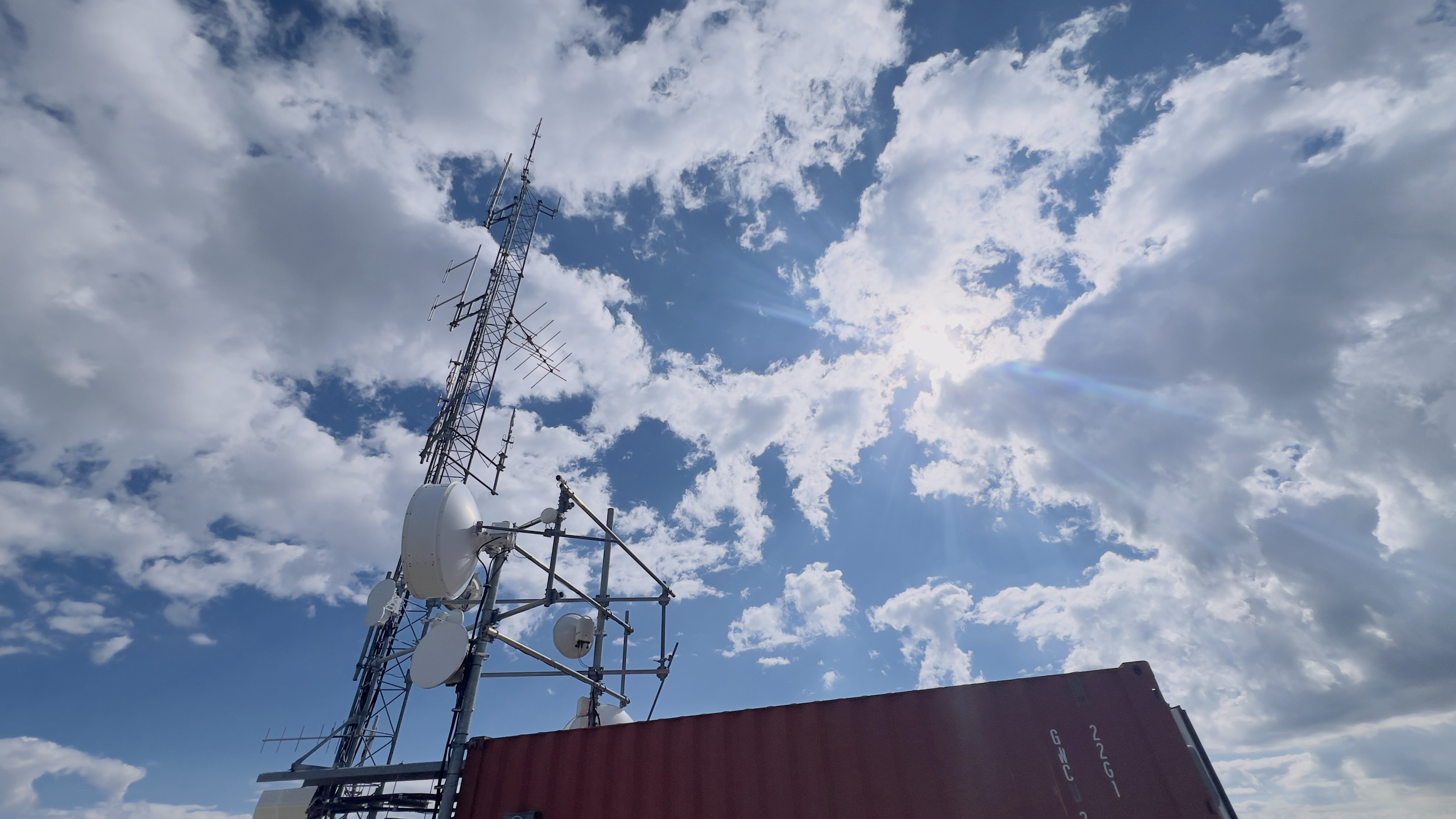

The building that hosts the 145.45(WB7TSQ), 147.14(K7MLA), 449.375(N2SKY), and 449.725(WB7TSQ) Analog Repeaters
